Save over 600! Equivalent to a FREE S36 Compact Mag Drill!

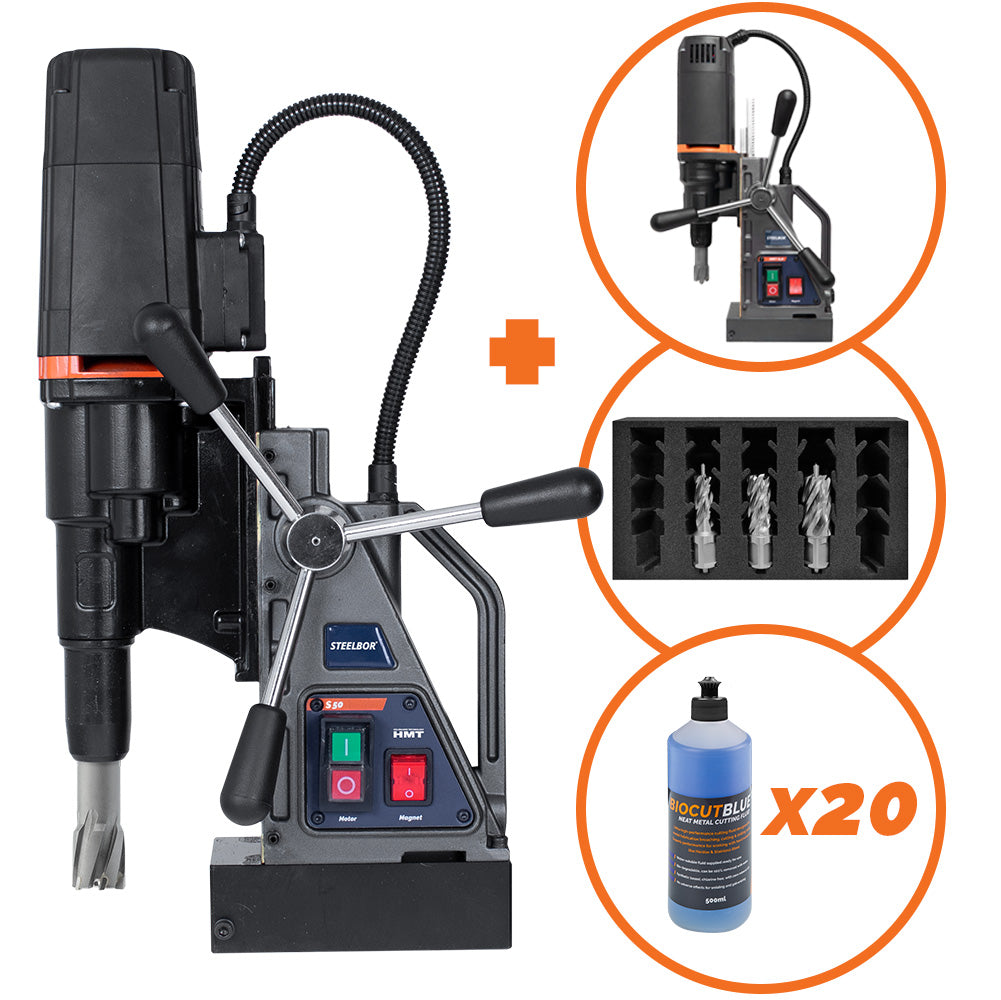

The JM26 Mag Drill Combo combines S50 & S36 mag drills with a Silvermax 25 3pc HSS cutter set and 20 bottles of BioCut Blue lubricating cutting fluid! All for practically the price of the S50 on is own.
- The S50 combines compact power with 2-speed control — ideal for heavy drilling and versatile site work up to 55mm.

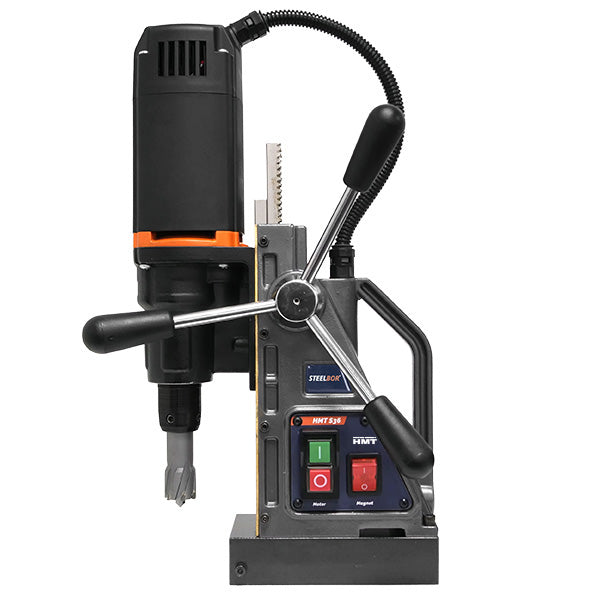

- The S36 is a compact mag drill designed to outperform other drills in its category, and combines a 110mm cutting depth with a highpower Eibenstock motor

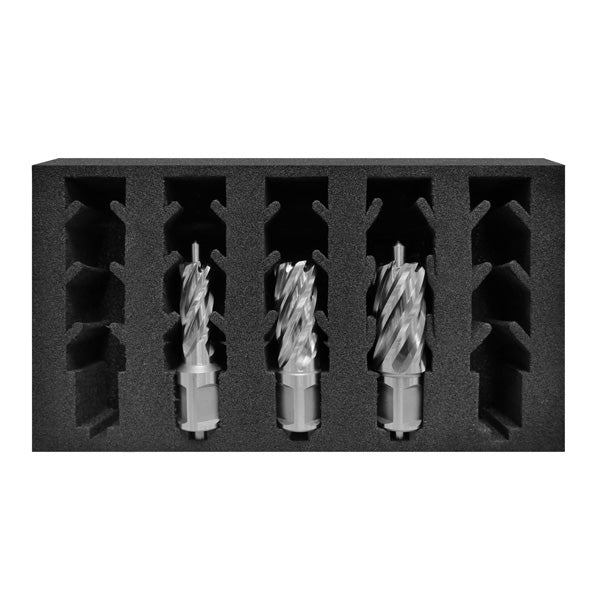

- 3pc Silvermax 25 HSS cutter set contains 14, 18, 22mm hss broach cutters + pilot pin

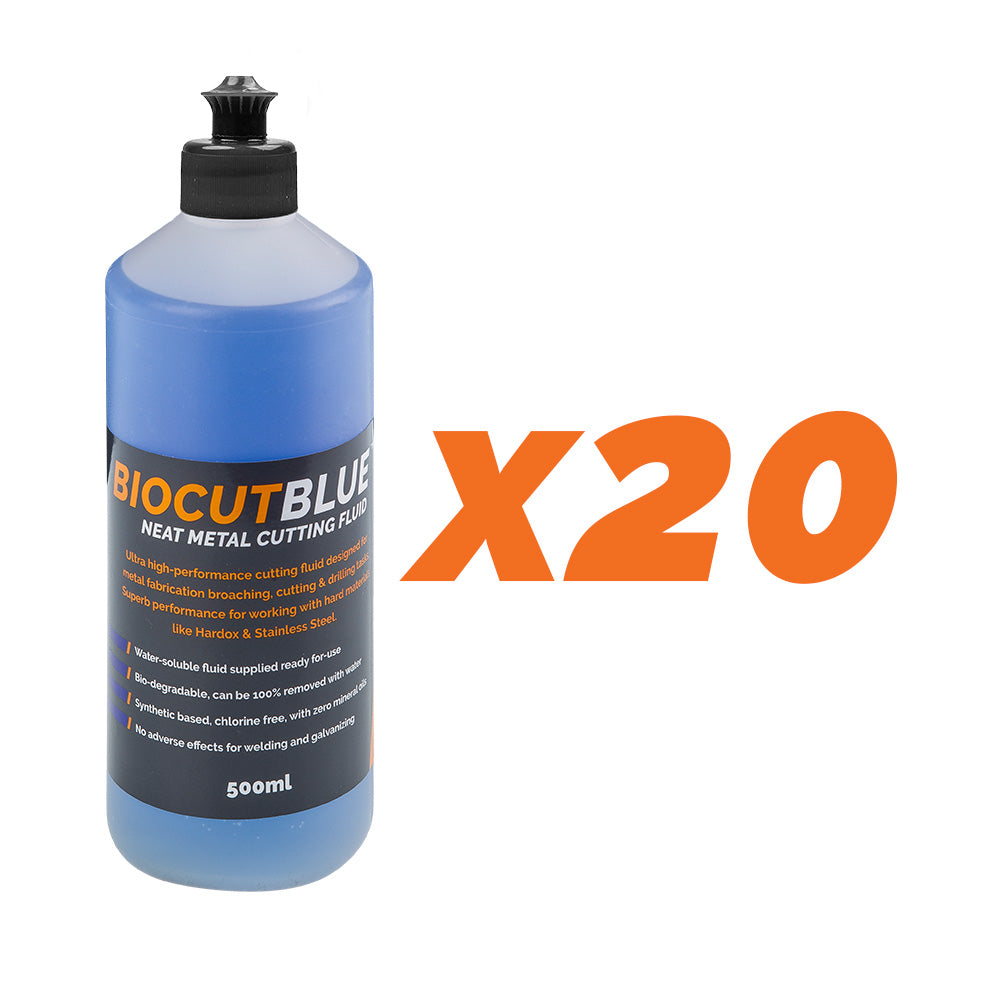

- 20 x BioCut Blue Cutting Fluid (500ml)
- Drills supplied in protective site cases
- Ideal for structural and fabrication shop environments
S50 Technical Specification
| MAX TCT CUTTER CAPACITY | 55mm |
| MAX HSS CUTTER CAPACITY | 50mm |
| MAX CUTTER LENGTH | 150mm |
| TWIST DRILL CAPACITY | 18mm |
| MAX TAP CAPACITY | N/A |
| MAX COUNTERSINKING | 32mm |
| LENGTH | 270mm |
| WIDTH (Inc Handles) | 165mm |
| HEIGHT (Min-Max) | 400 - 560mm |
| STROKE | 160mm |
| WEIGHT | 12.7 kg |
| MAGNET | 167 x 80 x 50mm |
| MAGNETIC ADHESION | 1250 kgs |
| MOTOR POWER | 1200w |
| SPEED RPM (No Load) | 400 / 720 |
| SPINDLE | 3/4" Weldon |
| ARBOR | Integral 19,05 mm (¾") Weldon |
| TAKES CHUCK | Yes |
| COOLANT SYSTEM | Optional Extra |
| WARRANTY | 2 Years (when registered) |
