HMT OverReach Magnet Base

£228.00

The HMT OverReach system is a range of magnetic base units that are designed to reach over obstructions such as plates or rivet heads to position a drilling unit where it would have not been previously possible.  The 861010 OverReach Fixed 110v Magnet Clamp is a versatile clamping and positioning...
Read More Below


CHOOSE YOUR SPECIFICATION



Videos

The HMT OverReach system is a range of magnetic base units that are designed to reach over obstructions such as plates or rivet heads to position a drilling unit where it would have not been previously possible.

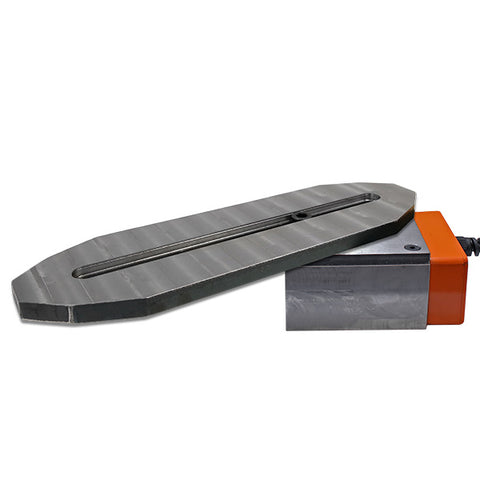

The 861010 OverReach Fixed 110v Magnet Clamp is a versatile clamping and positioning tool. Designed for applications where a magnet drill cannot be positioned directly above the required hole location. The powerful electromagnet can be positioned further away from the hole and a magnet drill can be placed on the fixed projecting steel plate to give more positioning options.

Additionally the 861010 OverReach Fixed 110v Magnet Clamp can be used as a double system with 2 clamps being used to support a plate. This allows for wider working area to position a magnetic drill above an obstruction

A range of Weldon extensions are available to extend the Carbidemax broach cutters to a longer working length when in use with the Overreach system
