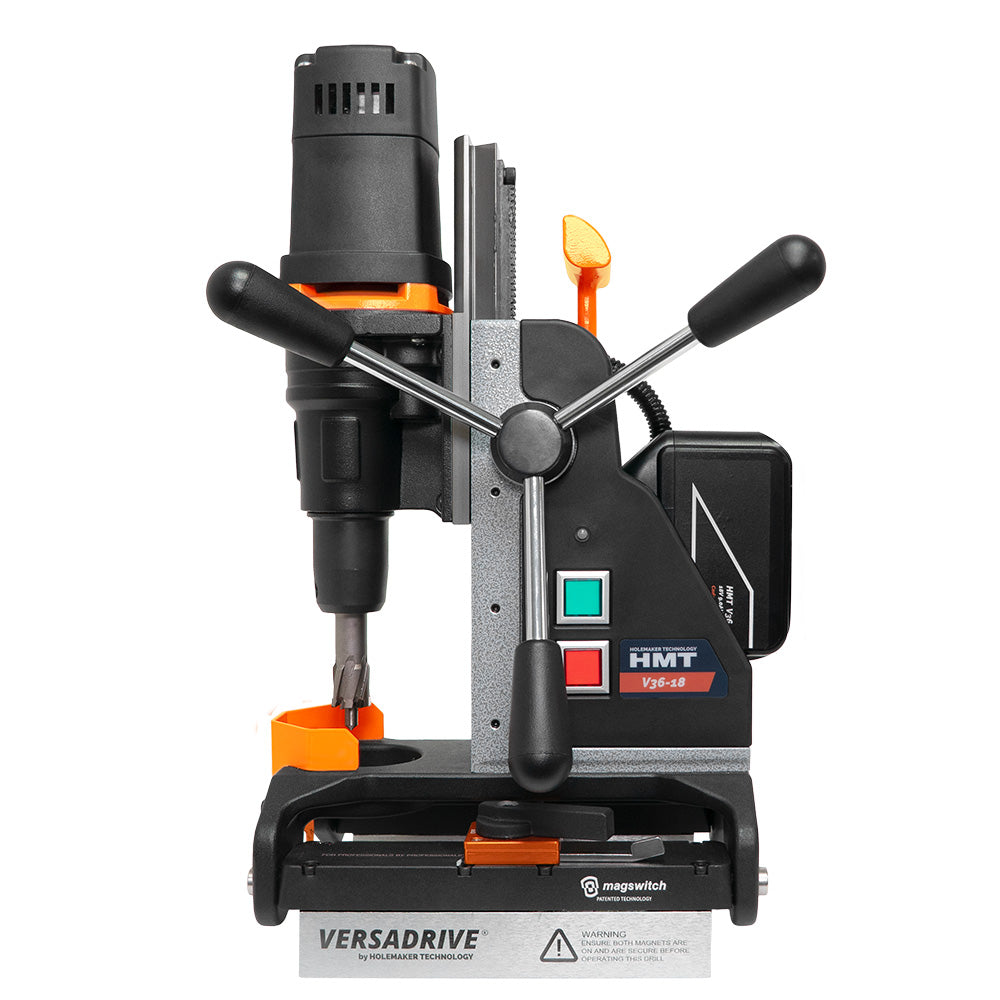

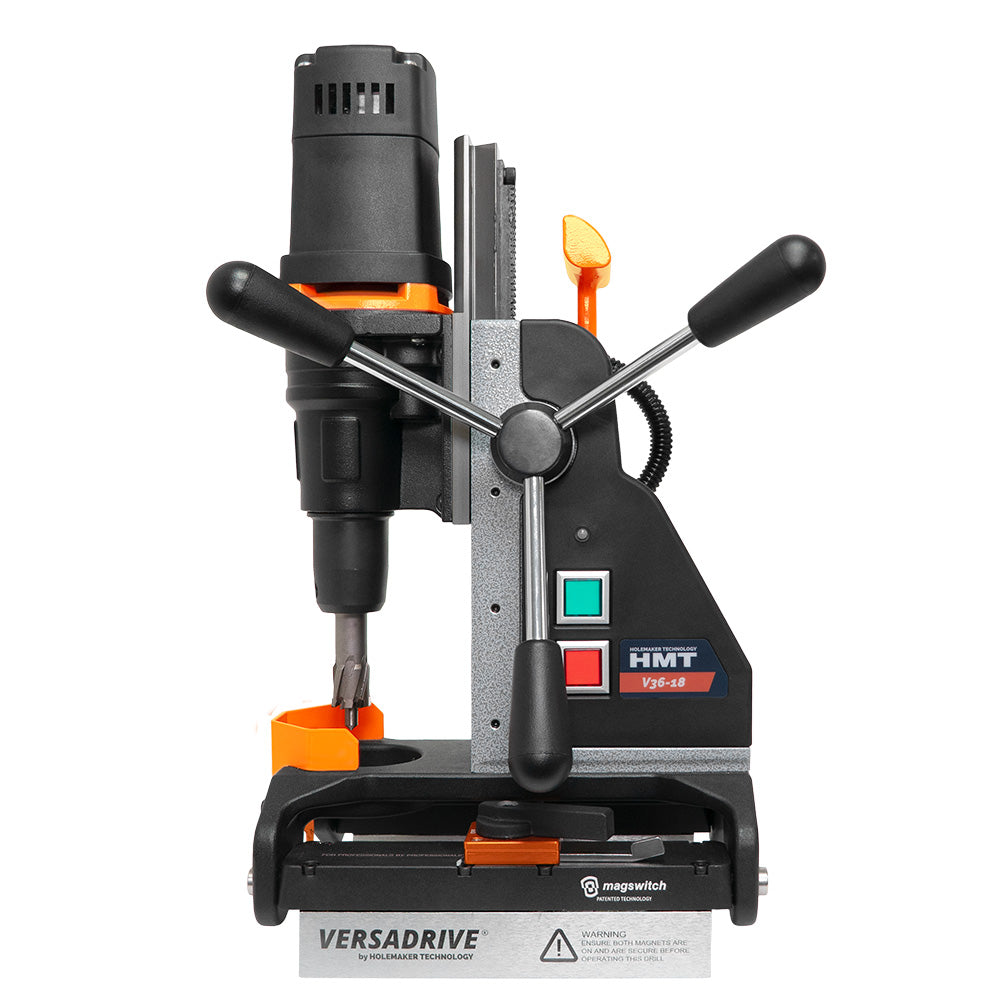

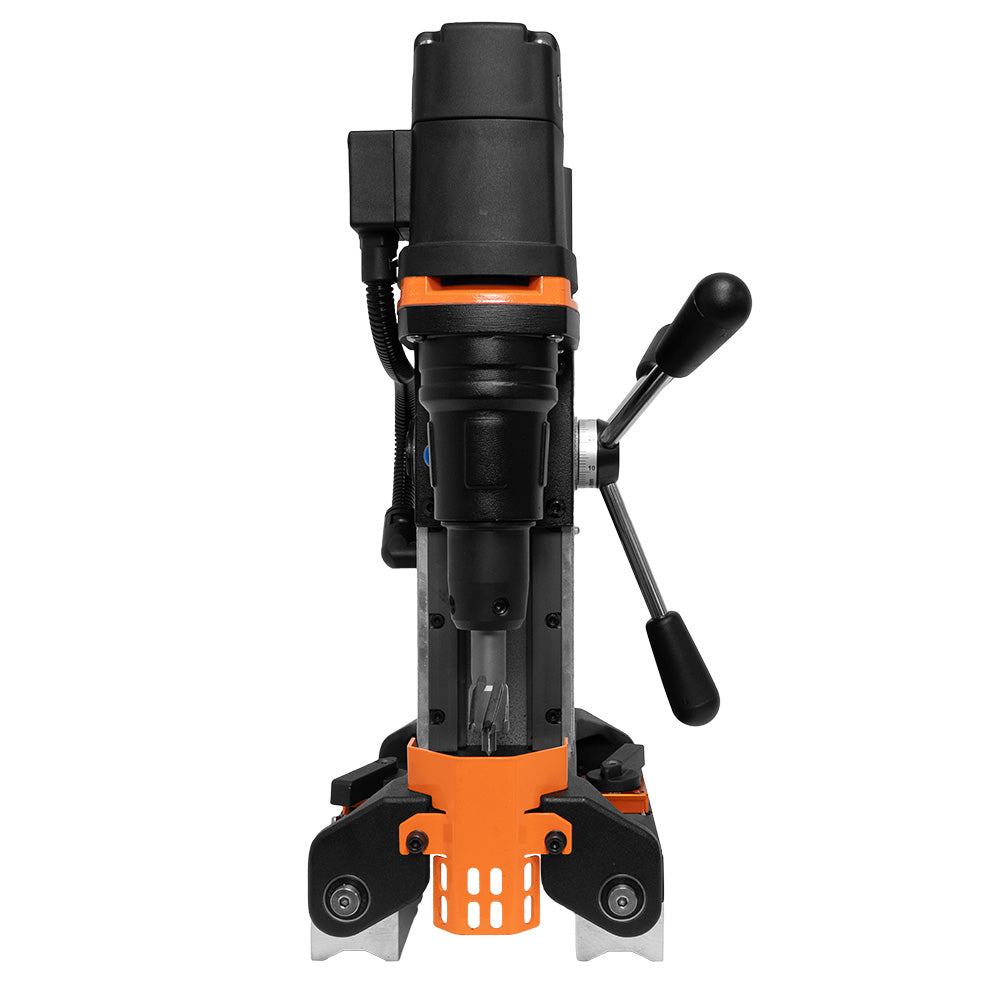

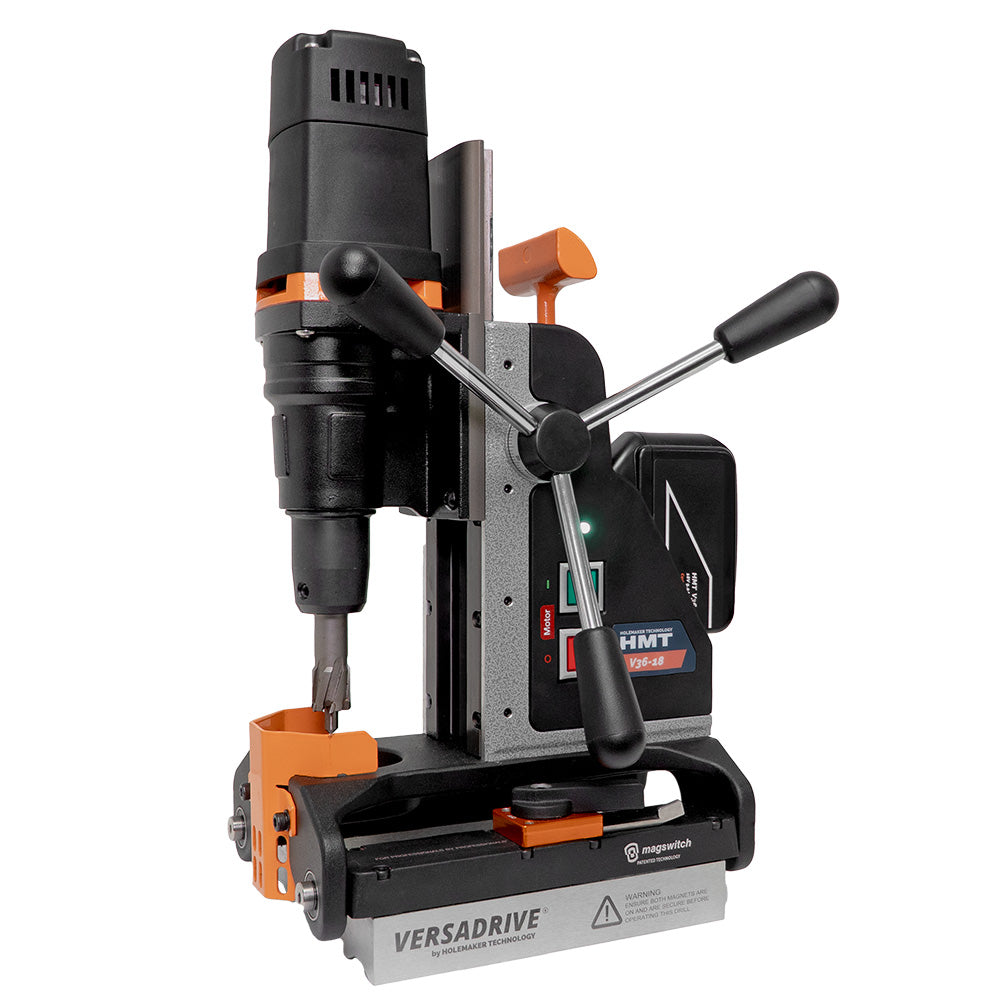

V36 Pipe Magnet Drill (805036P)
Videos
Drill anywhere. Even on pipe.
The V36 Pipe Magnet Drill brings cordless drilling, broaching and countersinking to pipework.
Built on the proven V36 platform, it swaps the flat mag base for a specialist twin-magnet system designed to grip securely to pipes and curved surfaces over 76mm in diameter.
Using the same permanent magnetic base as the V35 Pipe Drill, each magnet operates independently via lever control— meaning there is no power draw, no drain on the battery, and total safety even when the battery runs down.
In essence, it’s the best of both worlds:
- The mobility & performance of the V36 cordless mag drill
- The reliability and pipe-handling capability of the V35 Pipe
Key benefits include:
- The world's first cordless pipe drilling mag drill
- Use on both flat and contoured surfaces
- Swing away operation - for hole inspection and tool changing without adjusting mag drill position
- Can be used on both internal and external contoured surfaces over 76mm diameter
- Market leading 140mm stroke
- TCT cutter capacity up to 36mm diameter
Technical Specification
| CUTTER SIZE RANGE | 12 - 36mm TCT |
| MAX CUTTER CAPACITY | 36mm TCT |
| MAX CUTTER LENGTH | 110mm |
| TWIST DRILL CAPACITY | 1 - 13mm |
| MAX TAP CAPACITY | N/A |
| MAX COUNTERSINKING | 10 - 25mm |
| LENGTH | --mm |
| WIDTH (Inc Handles) | --mm |
| HEIGHT (Min-Max) | --mm |
| STROKE | 140mm |
| WEIGHT | -- kg |
| MAGNET (L X W) | -- x --mm |
| MAGNETIC ADHESION | -- kgs |
| MOTOR POWER | 1000w |
| TOTAL POWER | 1000w |
| SPEED RPM (No Load) | 530 min-1 |
| SPINDLE | 3/4" Weldon |
| ARBOR | Integral ¾" Weldon |
| COOLANT SYSTEM | Optional Extra |
| WARRANTY | 1 Year |
| Battery Capacity | 18v 4Ah / 9Ah Li-ion |
