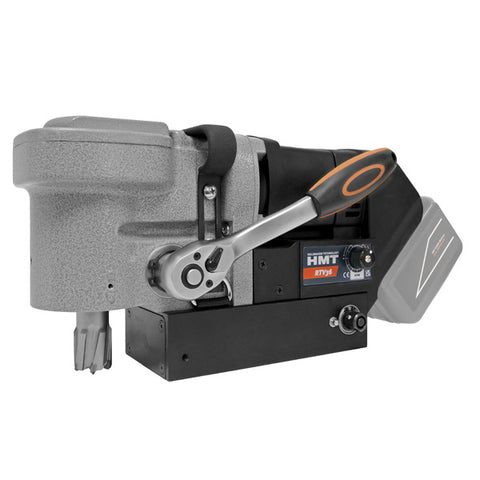

RTV36 Cordless Low Profile Mag Drill (805046)
Videos
The world's first cordless low-profile mag drill
The HMT RTV36 offers the flexibility of a cordless machine coupled with the accessibility benefits of a low profile machine.
Fitting into any gap greater than 178mm, the 18v battery powered RTV36 gives high-powered broaching and drilling solutions for jobsites with restricted access requirements or without generators or electrical connections.
- Compatible with Makita LXT batteries
- Quick release weldon arbor for keyless use
- Up to 49 x 18mm holes per 9.0Ah battery (10mm plate)
- Ratchet handle can be used on both sides of machine
- 36mm diameter TCT broaching capacity
- Fits into spaces 178mm or greater
- Max 40mm cutting depth
Technical Specification
| CUTTER SIZE RANGE | 12-36mm |
| MAX TCT CUTTER CAPACITY | 36mm |
| MAX HSS CUTTER CAPACITY | 32mm |
| TWIST DRILL CAPACITY | 13mm |
| Countersinking | 32mm |
| LENGTH (Inc 4Ah battery) | 385mm |
| WIDTH | 140mm |
| HEIGHT | 177mm |
| STROKE | 40mm |
| WEIGHT | 11.3kg |
| MAGNETIC FORCE | 650kg |
| MOTOR POWER | 1000W |
| TOTAL POWER | 1000W |
| SPEED RPM (No Load) | 270-430 RPM |
| SPINDLE | 19.05mm (3/4") Weldon |
| TAKES CHUCK | No |
| COOLANT SYSTEM | Optional Extra |
| WARRANTY | 1 Year |
| Battery Capacity | 18v 4Ah / 9Ah Li-ion |
