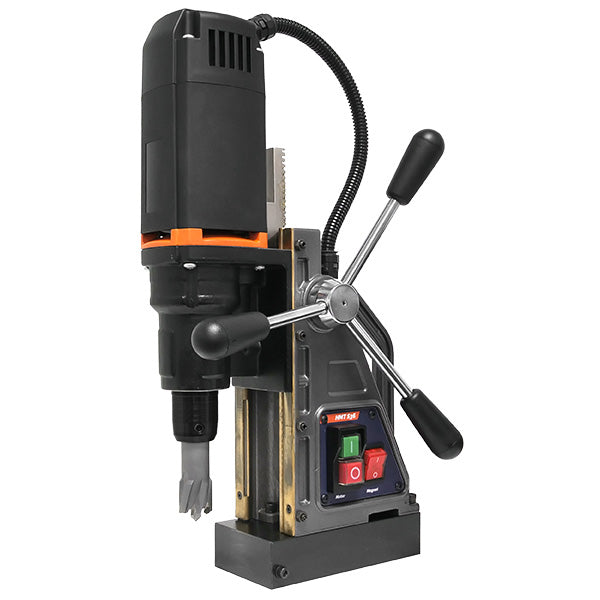

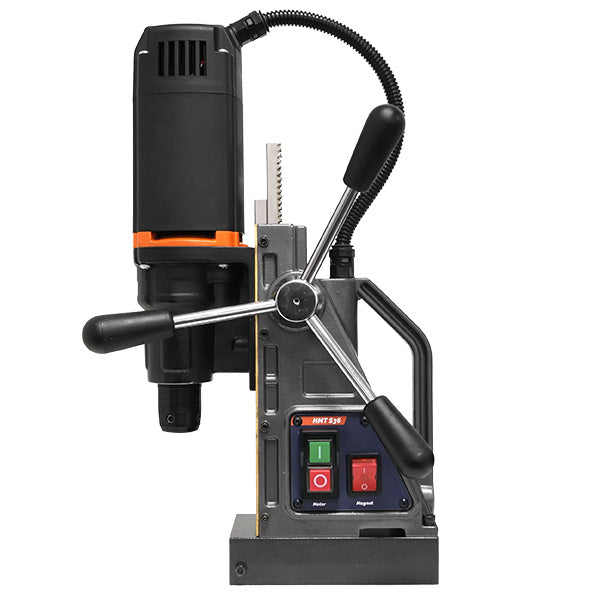

SteelBor S36 Compact Magnet Drill (850236)
Videos
Introducing the S36 - SteelBor's NEW flagship compact mag drill.
Faster, narrower and more powerful than the V35 and V36, the S36 boasts the largest cutting depth of any compact mag drill on the market, capable of drilling holes up to 110mm deep.
Its ultra fast (800RPM no load speed), high power Eibenstock motor means you can quickly and easily drill and broach holes from 12 - 36mm and up to 110mm deep before countersinking up to 25mm diameter.
Meanwhile it's light weight and compact size allows for swift, hassle-free transportation, comfortable use at height and space saving storage whilst its strong, blow-moulded site case keeps it protected and ready to go at a moments notice.
An upgraded top mounted cable gland ensures damage free operation and smooth, easy range of motion.
The S36's standard 3/4" integral weldon arbor gives complete cross compatibility with all standard broach cutters as well as seamless integration with the VersaDrive mag drill adapter for use with the VesraDrive system of cutting and drilling tools, for the widest range of metalworking solutions.
Technical Specification
| CUTTER SIZE RANGE | 12 - 36mm TCT |
| MAX CUTTER CAPACITY | 36mm TCT |
| MAX CUTTER LENGTH | 110mm |
| TWIST DRILL CAPACITY | 13mm |
| MAX TAP CAPACITY | N/A |
| MAX COUNTERSINKING | 25mm |
| LENGTH | 259mm |
| WIDTH (Inc Handles) | 156mm |
| HEIGHT (Min-Max) (exc. cable gland) | 348-495mm |
| STROKE | 147mm |
| WEIGHT | 10kg |
| MAGNET (L X W) | 160 x 80mm |
| MAGNETIC ADHESION | 1015kgs |
| MOTOR POWER | w |
| TOTAL POWER | 1050w |
| SPEED RPM (No Load) | 800min-1 |
| SPINDLE | 3/4" Weldon |
| ARBOR | Integral ¾" Weldon |
| COOLANT SYSTEM | Optional Extra |
| WARRANTY | 2 Year (When registered) |
*Supplied with metal safety guard, restraint strap, handles and protective blow-moulded sitecase
