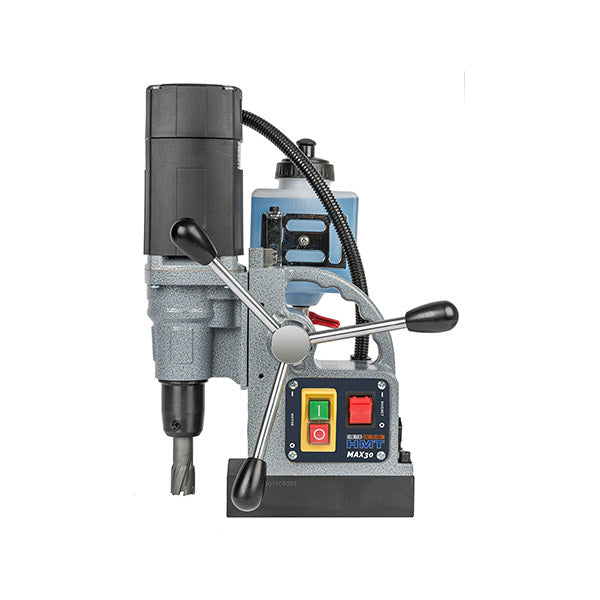

HMT MAX30 Magnetic Drill (803019)
Videos
THE MARKET LEADING INDUSTRIAL COMPACT MAGNET DRILL
At just 8.5kg, the Max-30 is the lightest magnetic drill available and probably the most compact. With a powerful 900 Watt high speed motor which is perfectly optimised for broaching the most common structural sizes of 12-30mm, particularly when used with CarbideMax™ TCT Cutters. Very precise and stable cut due to the direct rack and slide design.
Perfect for sitework situations as 8.5kg is a simple one hand lift.25% lighter than most competitors.
Each machine comes in a robust plastic site carrying case with foam inserts to protect the machine and accessories. Free accessory pack contains: removable internal coolant system, bottle of broaching lubricant, safety pack with gloves, specs, ear plugs, removable metal guard, safety chain, 4 hex keys.
Technical Specification
| CUTTER SIZE RANGE | 12 - 30 mm |
| MAX CUTTER LENGTH | 55 mm |
| TWIST DRILL RANGE | 5 - 13 mm |
| LENGTH | 275 mm |
| WIDTH INC HANDLES | 170 mm |
| HEIGHT | 293 - 383 mm |
| STROKE | 90 mm |
| WEIGHT | 8.5 kg |
| MAGNET (L X W) | 160 x 80 mm |
| MAGNETIC FORCE | 1200 kg |
| MOTOR POWER | 900 W |
| SPEED | 775 RPM |
| SPINDLE | 19,05 mm (¾”) Weldon |
| TAKES CHUCK | No |
| COOLANT SYSTEM | Removable |
| WARRANTY | 1 Year |
