Installation and repair of agricultural buildings and machinery is made easy with the VersaDrive® Agri starter kit.
The kit includes the most versatile, lightweight compact magnet drill on the market, alongside tooling to create and enlarge holes from 8-26mm, perfect for drilling and reaming in the field.

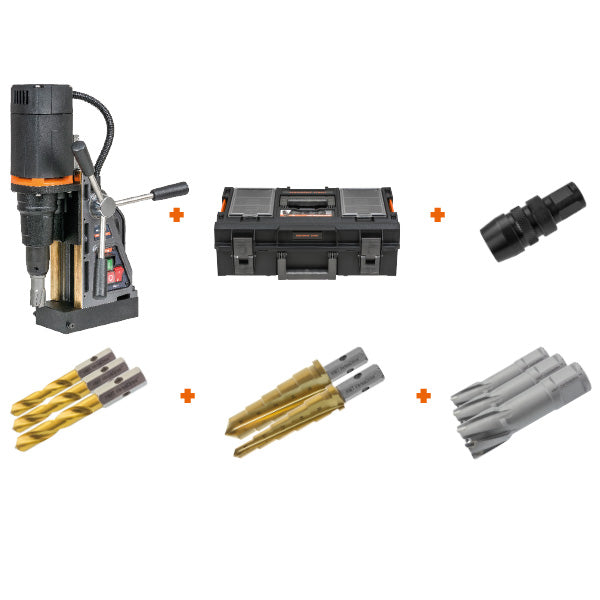

Kit Contents
- 1 x V35 VersaDrive® Magnetic Drill
- 1 x VersaDrive® STAKIT Base 200 Case

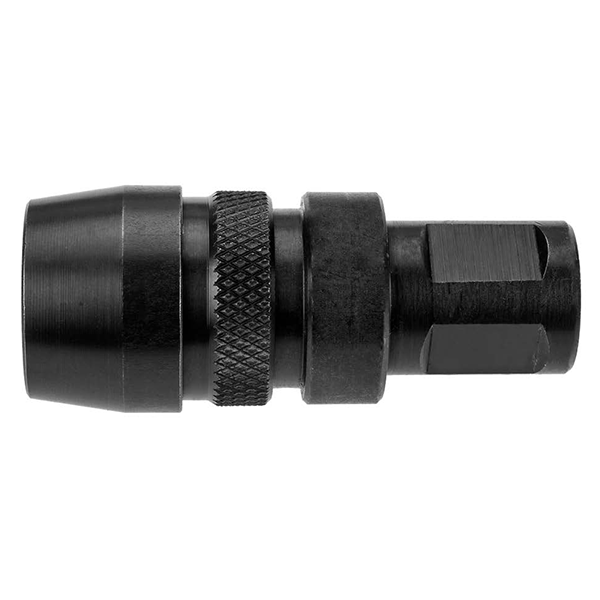

- 1 x VersaDrive® Rapid-Lock Magnet Drill Adapter

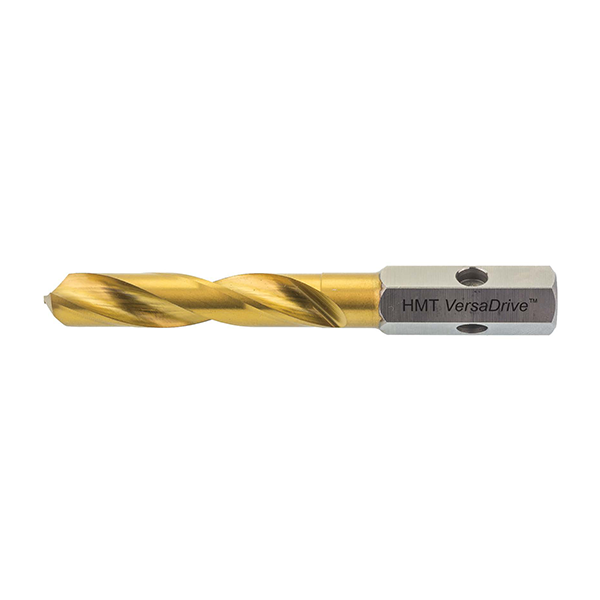

- 3 x VersaDrive® HSS-Cobalt Drill Bits

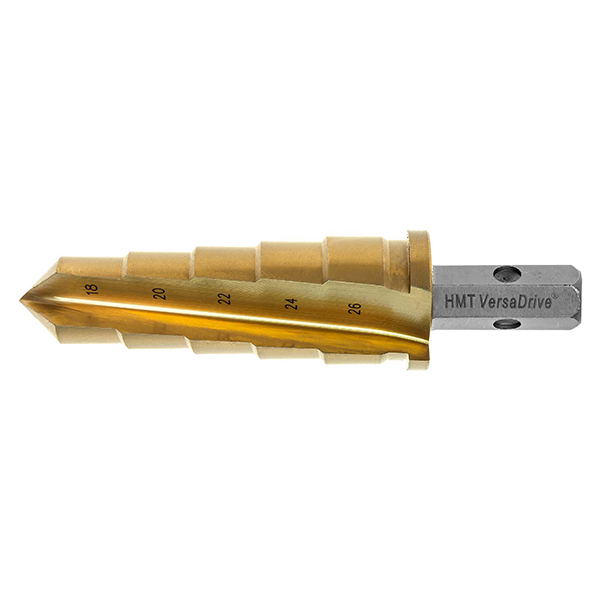

8, 10, 12mm (M14 Tap Size) - 2 x VersaDrive® ImpactaStep Cutters

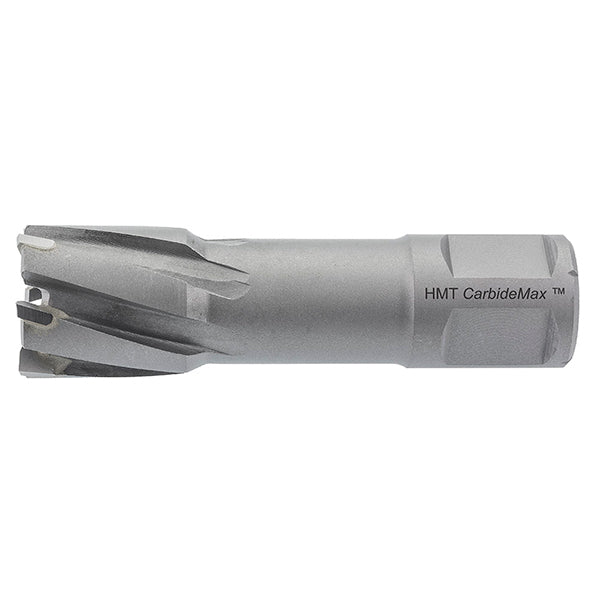

8 - 16mm & 18 - 26mm - 3 x CarbideMax® 40 TCT Broach Cutters
14, 18, 22mm - 2 x CarbideMax® 40 pilot pins

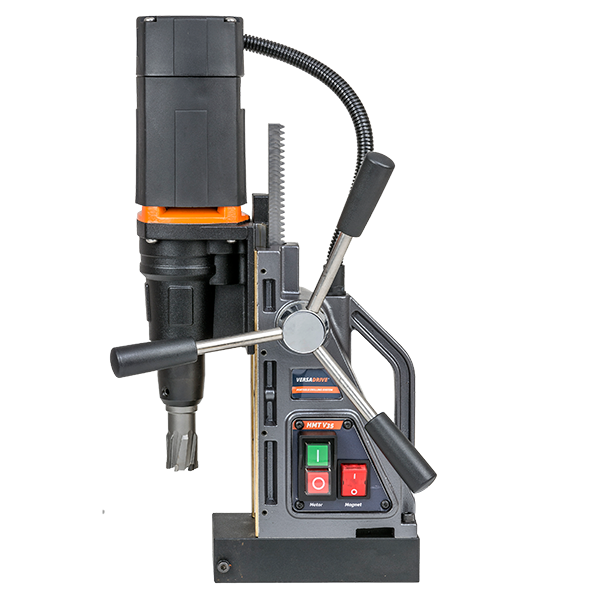

V35 Technical Specifications
| CUTTER SIZE RANGE | 12 - 35mm TCT |
| MAX CUTTER CAPACITY | 35mm TCT |
| MAX CUTTER LENGTH | 110mm |
| TWIST DRILL CAPACITY | 12mm |
| MAX TAP CAPACITY | N/A |
| MAX COUNTERSINKING | 25mm |
| LENGTH | 220mm |
| WIDTH (Inc Handles) | 173mm |
| HEIGHT (Min-Max) | 305-445mm |
| STROKE | 140mm |
| WEIGHT | 9.5 kg |
| MAGNET (L X W) | 160 x 80mm |
| MAGNETIC ADHESION | 1000 kgs |
| MOTOR POWER | 850w |
| TOTAL POWER | 900w |
| SPEED RPM (No Load) | 750 min-1 |
| SPINDLE | 3/4" Weldon |
| ARBOR | Integral ¾" Weldon |
| COOLANT SYSTEM | Gravity Oil Fed |
| WARRANTY | 2 Year (When registered) |
